FUSE-FIT

The perfect blend of performanThe original, proven by the world’s top club fitters. Don’t be fooled by knockoffs

UNIQUE

The unique over the hosel design permits full shaft insertion which negates the need for additional tip trimming to yield proper stiffness.

DESIGN

The slotted design also works for both RH and LH players and there is no chance of slippage or pull away thanks to the patented design.

POPULAR

FUSE-FIT has become very popular with the top club fitting shops worldwide.

Features

Introduced in 2010, FUSE-FIT was the predecessor to the FAZ-FIT lineup

Works for both RH and LH players

The FUSE-FIT system is adaptable to almost any component regardless of brand

FUSE-FIT requires that the outside diameter of the hosel be sanded for installation

The shaft adapter and hosel adapters are made from 7075 T6 Aluminum

The hosel adapter and Compression nut made from 7075 T6 Aluminum

Offers full shaft insertion within the hosel

Choose from A, B or C hosel piece dependent on the outside hosel diameter of club head

Compression lock keyway design ensures there is no slippage or loosening during usage

Straight 90 degree insertion with no loft / lie adjustability

PRODUCTS

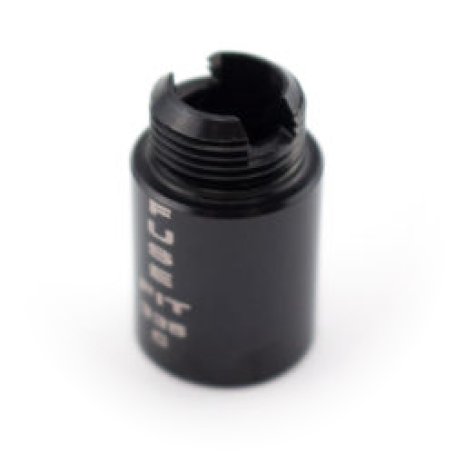

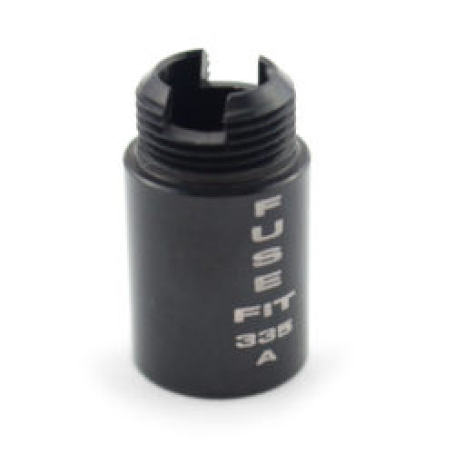

FUSE-FIT .335 HOSEL ADAPTER #A *FITS .475 TO .495 HOSEL OD

Installation Instructions

FUSE-FIT .335 HOSEL ADAPTER #A *FITS .475 TO .495 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .475″- .495″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.63 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.630″

Thread Type

1/2-28

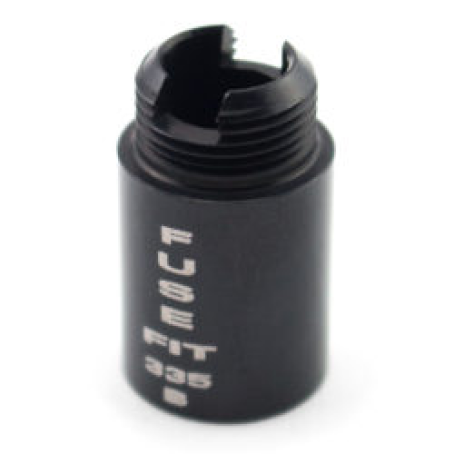

FUSE-FIT .335 HOSEL ADAPTER #B *FITS .495 TO .515 HOSEL OD

Installation Instructions

FUSE-FIT .335 HOSEL ADAPTER #B *FITS .495 TO .515 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .495″- .515″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.63 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.630″

Thread Type

1/2-28

FUSE-FIT .335 HOSEL ADAPTER #C *FITS .515 TO .535 HOSEL OD

Installation Instructions

FUSE-FIT .335 HOSEL ADAPTER #C *FITS .515 TO .535 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .515″- .535″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.65 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.650″

Thread Type

1/2-28

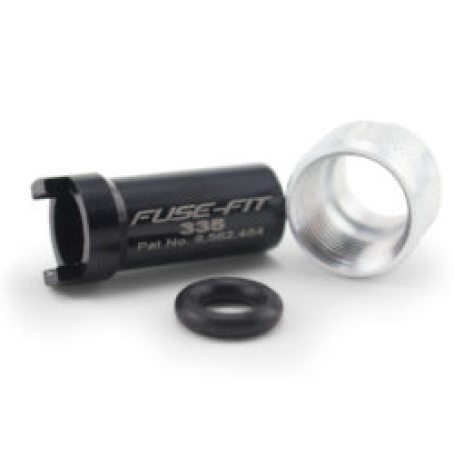

FUSE-FIT .335 SHAFT ADAPTER W/ NUT

Installation Instructions

FUSE-FIT .335 SHAFT ADAPTER W/ NUT

  • Works with all .335 shafts.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.
  • Can be used with A, B or C hosel adapter.

Weight

0.0110231 lbs

Dimensions

1.57 x 0.625 x 0.67 in

Finish

Polished / Anodized Aluminum

Anti Rotation Port

Tooth

Nut Outside Diameter

.625″

Thread Type

1/2-28

FUSE-FIT .350 HOSEL ADAPTER #A *FITS .475 TO .495 HOSEL OD

Installation Instructions

FUSE-FIT .350 HOSEL ADAPTER #A *FITS .475 TO .495 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .475″- .495″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.605 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.605″

Thread Type

1/2-28

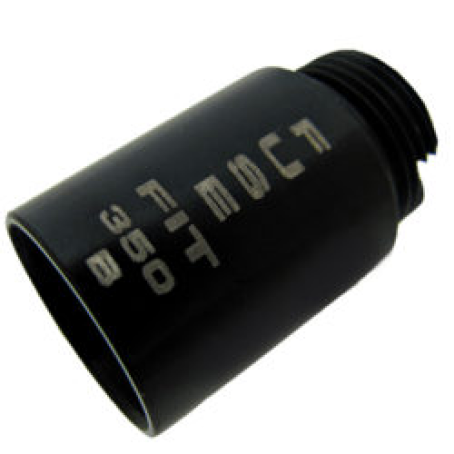

FUSE-FIT .350 HOSEL ADAPTER #B *FITS .495 TO .515 HOSEL OD

Installation Instructions

FUSE-FIT .350 HOSEL ADAPTER #B *FITS .495 TO .515 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .495″- .515″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.63 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.630″

Thread Type

1/2-28

FUSE-FIT .350 HOSEL ADAPTER #C *FITS .515 TO .535 HOSEL OD

Installation Instructions

FUSE-FIT .350 HOSEL ADAPTER #C *FITS .515 TO .535 HOSEL OD

  • Works with all .335 bore metalwoods or hybrids.
  • Fits Hosel outside diameter of .515″- .535″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0099208 lbs

Dimensions

1.57 x 0.65 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.650″

Thread Type

1/2-28

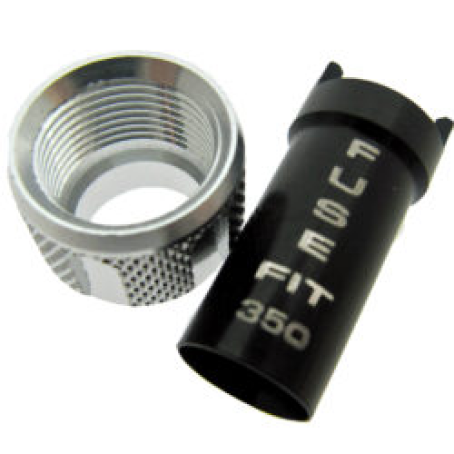

FUSE-FIT .350 SHAFT ADAPTER W/ NUT

Installation Instructions

FUSE-FIT .350 SHAFT ADAPTER W/ NUT

  • Works with all .350 shafts.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.
  • Can be used with A, B or C hosel adapter.

Weight

0.0110231 lbs

Dimensions

1.57 x 0.625x 0.67 in

Finish

Polished / Anodized Aluminum

Anti Rotation Port

Tooth

Nut Outside Diameter

.625″

Thread Type

1/2-28

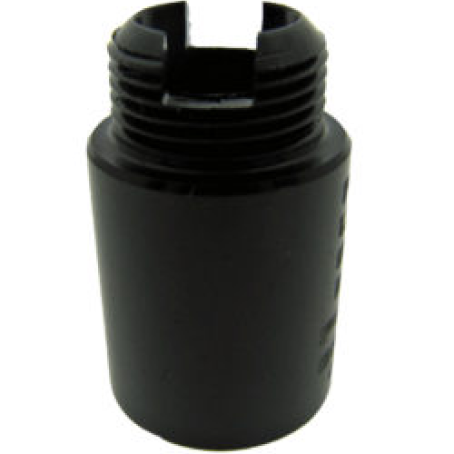

FUSE-FIT .370 HOSEL ADAPTER #A *FITS .520 TO .535 HOSEL OD

Installation Instructions

FUSE-FIT .370 HOSEL ADAPTER #A *FITS .520 TO .535 HOSEL OD

  • Works with all .370 bore iron hybrids and irons.
  • Fits Hosel outside diameter of .520″-.535″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0121254 lbs

Dimensions

1.57 x 0.61 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.610″

Thread Type

9/16-24

FUSE-FIT .370 HOSEL ADAPTER #B *FITS .535 TO .550 HOSEL OD

Installation Instructions

FUSE-FIT .370 HOSEL ADAPTER #B *FITS .535 TO .550 HOSEL OD

  • Works with all .370 bore iron hybrids and irons.
  • Fits Hosel outside diameter of .535″-.550″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0121254 lbs

Dimensions

1.57 x 0.65 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.650″

Thread Type

9/16-24

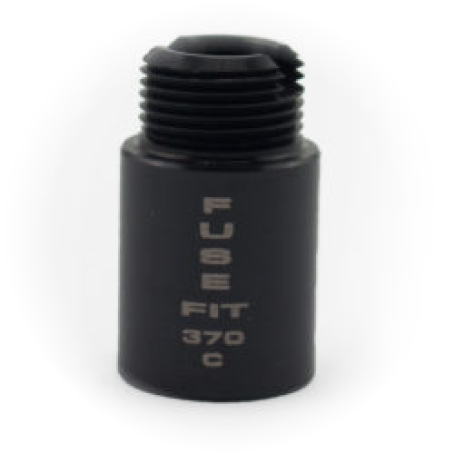

FUSE-FIT .370 HOSEL ADAPTER #C *FITS .550 TO .570 HOSEL OD

Installation Instructions

FUSE-FIT .370 HOSEL ADAPTER #C *FITS .550 TO .570 HOSEL OD

  • Works with all .370 bore iron hybrids and irons.
  • Fits Hosel outside diameter of .550″-.570″.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.

Weight

0.0121254 lbs

Dimensions

1.57 x 0.68 x 0.67 in

Finish

Anodized Aluminum

Anti Rotation Port

Slotted

Nut Outside Diameter

.680″

Thread Type

9/16-24

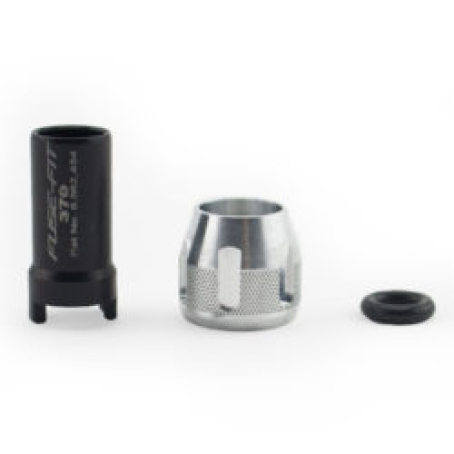

FUSE-FIT .370 SHAFT ADAPTER W/ NUT

Installation Instructions

FUSE-FIT .370 SHAFT ADAPTER W/ NUT

  • Works with all .370 shafts.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 aircraft aluminum.
  • Alignment mark ensures proper orientation.
  • Works for RH or LH golfers.
  • Can be used with A, B or C hosel adapter.

Weight

0.0132277 lbs

Dimensions

1.57 x 0.7 x 0.67 in

Finish

Polished / Anodized Aluminum

Anti Rotation Port

Tooth

Nut Outside Diameter

.700″

Thread Type

9/16-24

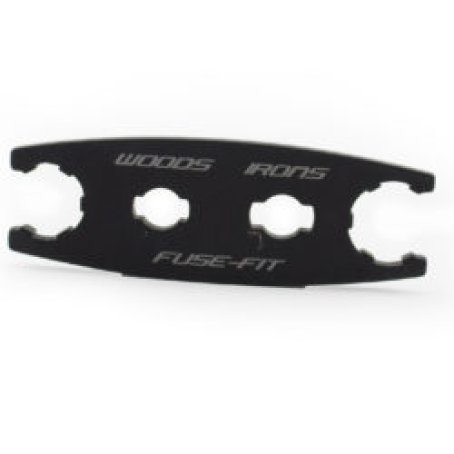

FUSE-FIT ASSEMBLY WRENCH

Installation Instructions

FUSE-FIT ASSEMBLY WRENCH

  • Works with all FUSE-FIT adapters.
  • Made in the U.S.A.
  • Used to properly align shaft adapters for consistent orientation.
  • A must have tool for properly tightening adapters prior to ball striking.

Weight

0.1 lbs

Dimensions

3.5 x 1.18 x 0.2 in

OUTSIDE DIAMETER GUIDE FOR FUSE FOR HOSEL ADAPTER

FUSE-FIT .335 Hosel Adapter #A

OD: fits .475 to .495″ Hosel OD

FUSE-FIT .335 Hosel Adapter #B

OD: fits .495 to .515″ Hosel OD

FUSE-FIT .335 Hosel Adapter #C

OD: fits .515 to .535″ Hosel OD

FUSE-FIT .370 Hosel Adapter #A

OD: fits .520 to .535″ Hosel OD

FUSE-FIT .370 Hosel Adapter #B

OD: fits .535 to .550” Hosel OD

FUSE-FIT .370 Hosel Adapter #C

OD: fits .550 to .570″ Hosel OD
