UNI-FIT

The most innovative OEM replacement system ever designed. Use one shaft adapter to easily change between all major OEM offerings in drivers and fairway woods

HUGE BENEFITS

During the development process we set out to create a system that was not only a huge benefit to club fitters, but one that had merit amongst avid golfers as well.

BONUS

The decision by the United States Golf Association to allow the UNI-FIT system to “Conform to the Rules of Golf” is a huge bonus! As a fitter you can use this system to eliminate fitting carts while doing away with the need to assemble finished clubs with various OEM shaft tips. the club head.

The details

12 unique hosel settings

Conforms to USGA Rules

Works for RH/LH golfers

No damage to club, can be used to retro fit any head and shaft

Specialized UNI-FIT torque wrench ensures proper tightening of each component

Choose from fourteen OEM hosel offerings

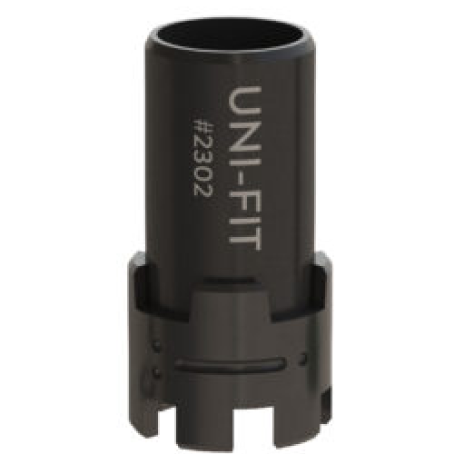

  • 2302 – Titleist *drivers and 913 fairways

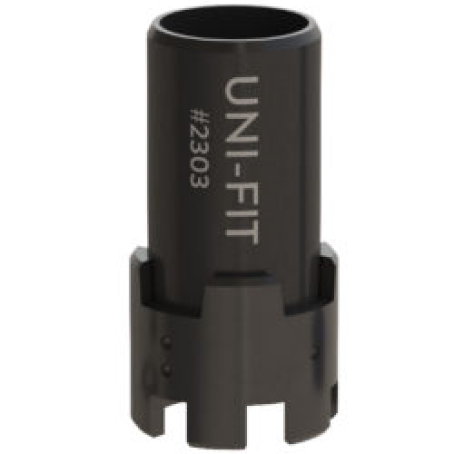

  • 2303 – Callaway *post RZRFIT
  • 2305 – Nike *post STR8 fit
  • 2306 – Taylor Made *RBZ and older

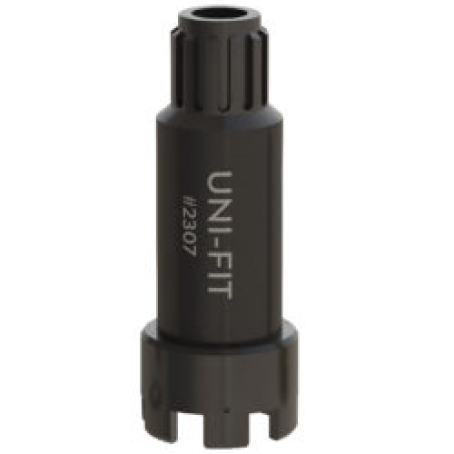

  • 2307 – Taylor Made *post RBZ
  • 2308 – Mizuno *all adjustable models
  • 2309 – Cobra *Amp Cell

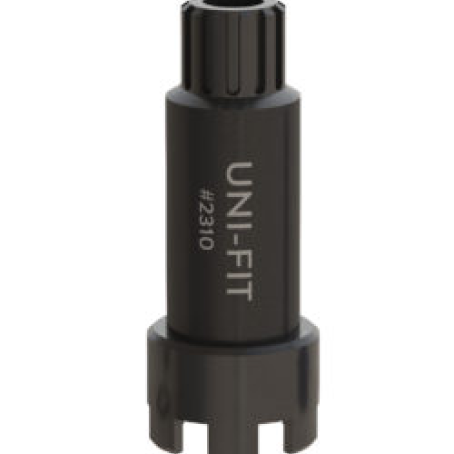

  • 2310 – Cleveland and Srixon *most models

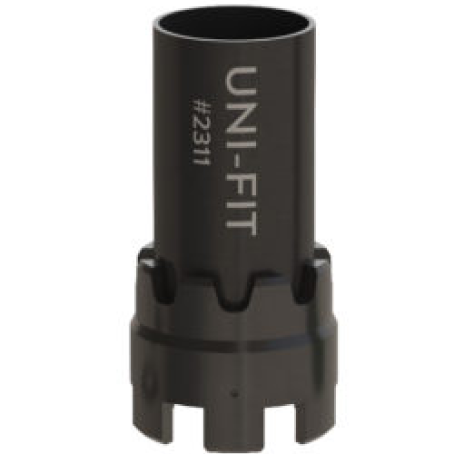

  • 2311 – Cobra *post Amp Cell
  • 2312 – Titleist *915 – Current Fairway woods

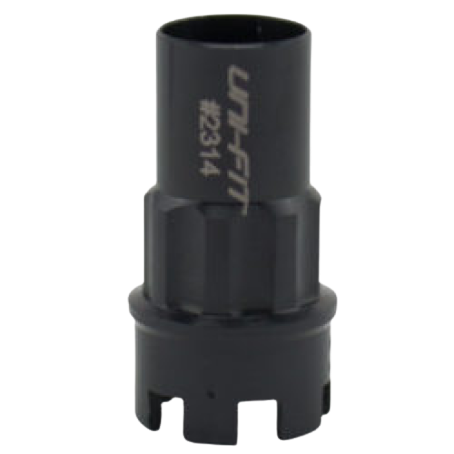

  • 2313 – Ping *post I20
  • 2314 – Tour Edge *E8 and EX10

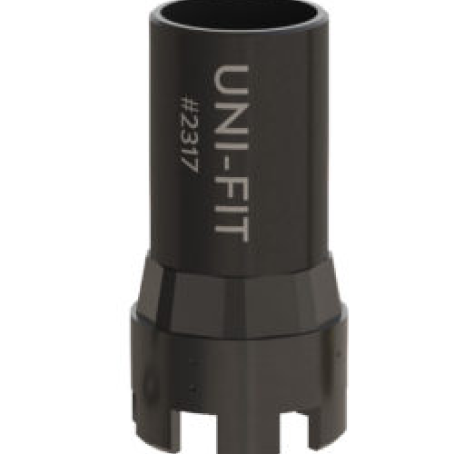

  • 2317 – PXG *all driver and fairway models

PRODUCTS

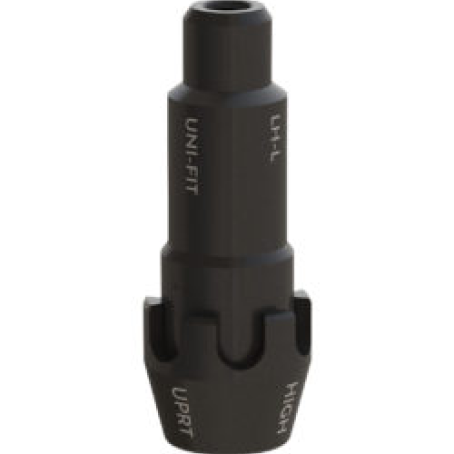

UNI-FIT .335 SHAFT ADAPTER

Installation Instructions

UNI-FIT .335 SHAFT ADAPTER

  • Works with all .335 shafts
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • 1 degree of total adjustability.
  • Offer 12 different playing positions.
  • Works for RH or LH golfers.

Weight

0.0132277 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR CALLAWAY® W/ BLUE BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR CALLAWAY® W/ BLUE BOLT & WASHER

  • Works with Callaway® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offer 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0209439 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR CLEVELAND / SRX® W/ BLUE BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR CLEVELAND / SRX® W/ BLUE BOLT & WASHER

  • Works with SRX® & Cleveland® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offer 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0209439 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR COBRA® V1 W/ PURPLE BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR COBRA® V1 W/ PURPLE BOLT & WASHER

  • Works with Cobra® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 6 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02314854 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR COBRA® V2 W/ PURPLE & GOLD BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR COBRA® V2 W/ PURPLE & GOLD BOLT & WASHER

  • Works with Cobra® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02314854 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR MIZUNO® W/ PINK BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR MIZUNO® W/ PINK BOLT & WASHER

  • Works with Mizuno® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight GRADE 5 Titanium.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02535316 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Polished Titanum

UNI-FIT HOSEL PC. FOR PING® W/ PINK BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR PING® W/ PINK BOLT & WASHER

  • Works with Ping® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from durable 17-4 stainless steel.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02535316 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Power Coated

UNI-FIT HOSEL PC. FOR PXG® W/ GOLD BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR PXG® W/ GOLD BOLT & WASHER

  • Works with PXG® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0242508 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR T. EDGE® V1 W/ PURPLE BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR T. EDGE® V1 W/ PURPLE BOLT & WASHER

  • Works with Tour Edge® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0242508 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR T. EDGE® V2 W/ PURPLE BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR T. EDGE® V2 W/ PURPLE BOLT & WASHER

  • Works with Tour Edge® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0242508 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR TAYLOR MADE® V1 W/ GOLD BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR TAYLOR MADE® V1 W/ GOLD BOLT & WASHER

  • Works with Taylor Made® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02314854 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR TAYLOR MADE® V2 W/ GOLD BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR TAYLOR MADE® V2 W/ GOLD BOLT & WASHER

  • Works with Taylor Made and Adams® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.02314854 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR TITLEIST® FAIRWAYS W/ SILVER BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR TITLEIST® FAIRWAYS W/ SILVER BOLT & WASHER

  • Works with Titleist® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0198416 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR TITLEIST® W/ GREEN BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR TITLEIST® W/ GREEN BOLT & WASHER

  • Works with Titleist® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from lightweight 7075 T651 Aluminum.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0220462 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Anodized Aluminum

UNI-FIT HOSEL PC. FOR YONEX® W/ GREEN BOLT & WASHER

Installation Instructions

UNI-FIT HOSEL PC. FOR YONEX® W/ GREEN BOLT & WASHER

  • Works with Yonex® metalwoods.
  • Conforms with U.S.G.A. Rules.
  • Made in the U.S.A.
  • Milled from 90-6-4 Titanium.
  • Offers 12 different playing positions.
  • Includes Titanium bolt, Washer and O-Ring.
  • Works for RH or LH golfers.

Weight

0.0198416 lbs

Dimensions

1.57 x 0.67 x 0.67 in

Finish

Machined Titanium

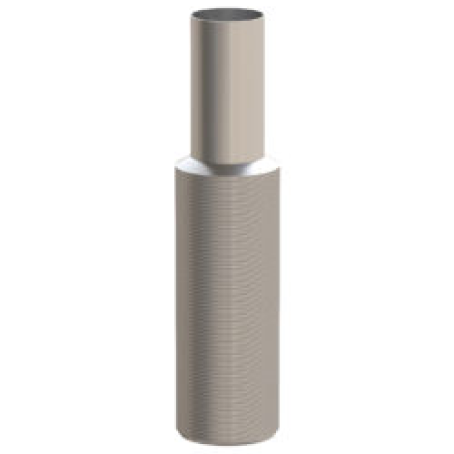

UNI-FIT OEM SCREW REMOVAL TOOL

Installation Instructions

UNI-FIT OEM SCREW REMOVAL TOOL

  • Helps remove the original screw without damage
  • A must have to set screw and o-ring and UNI-FIT screws.

Weight

0.0132277 lbs

Dimensions

1.69 x 0.35 x 0.35 in

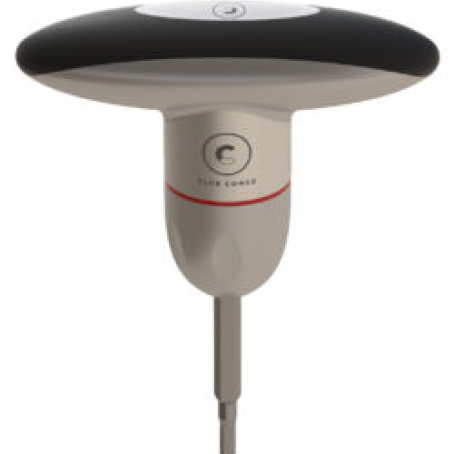

UNI-FIT TORQUE WRENCH

Installation Instructions

UNI-FIT TORQUE WRENCH

  • Specially designed to provide uniform torque for proper assembly.
  • Works with all UNI-FIT parts.
  • Removable hex bit can easily be changed.
  • A must have tool in order to use UNI-FIT parts.

Weight

0.3 lbs

Dimensions

4.5 x 3.5 x 1.14 in
